肺通气影像仪

一、行业类别：医疗器械

二、电磁兼容标准：YY0505-2012

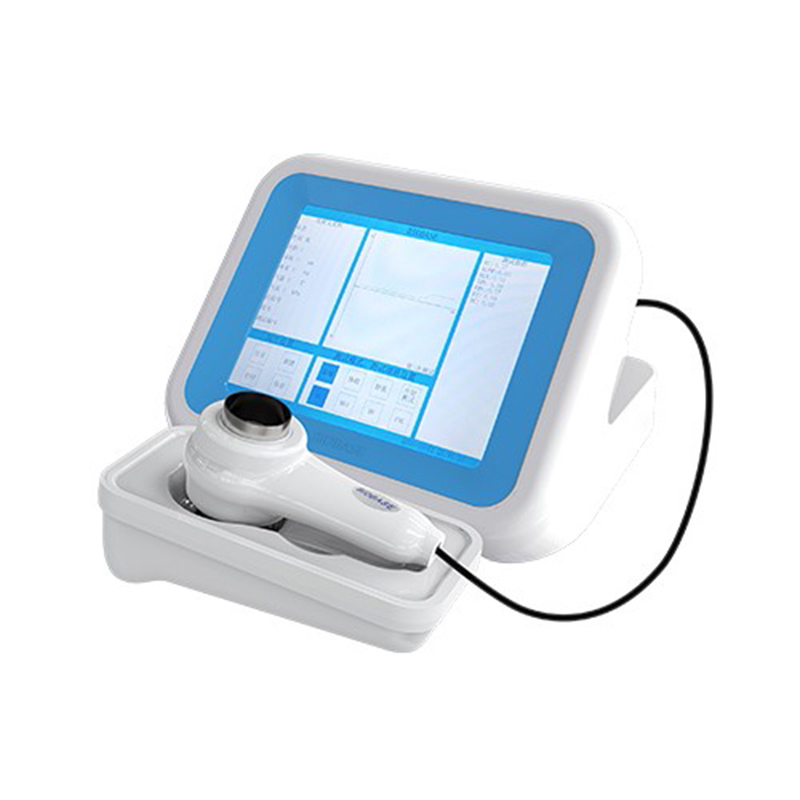

三、产品名称：肺通气影像仪

四、EMC电磁兼容问题要点：

射频治疗仪产品在实施电磁兼容项目时，产品在辐射发射、电快速脉冲群等两项电磁兼容测试结果不符项YY0505-2012测试要求。

辐射发射：在66 MHz频率范围不符合CLASS A限值要求。

脉冲群：产品在实施脉冲群干扰时，显示屏闪烁。

五、电磁兼容评估与分析

辐射发射：根据辐射发射测试结果的频率特性分析，66MHz包络超标频率主要是电池供电端引起的骚扰，结合产品内部各硬件单元

特性，判断干扰源主要是电源供电线引起的干扰，辐射产生的源头是该线缆流动着无用的共模电流信号，该信号等效单极天线效应，

从而导致 辐射发射超标。

六、EMC电磁兼容整改方案

1、将该产品结构重新排版，左→右调整为电源板→工控板→模拟板，滤波器、开关电源移至左下角（减少了直流端线的长度），避免

与USB、HDMI等信号线搭接；WIFI天线板移至左上角。

2、显示线、触摸屏线做滤波处理

3、电源板直流端做滤波处理

4、工控板电源线、电源板信号线做滤波处理

5、信号排线做滤波处理

七、电磁兼容整改测试结果对比

辐射发射整改前

辐射发射整改后
